Quick Details

  • Condition: New
  • Type: Screw, Permanent Magnetic Variable Frequency Air compressor
  • Configuration: Stationary
  • Power Source: AC Power
  • Lubrication Style: Lubricated
  • Mute: Yes
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: DENAIR
  • Model Number: DAV-160A
  • Voltage: 220v, 380v, 440v
  • Dimension(L*W*H): 2700*1700*2000 mm
  • Weight: 3500KG
  • Certification: ISO99001,CE,GC
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: White and blue
  • Air end: DENAIR
  • Nombre: Permanent Magnetic Variable Frequency Air compressor
  • Driven method: Direct Driven
  • Starting method: Variable Frequency Starting
  • Bearings: Sweden SKF
  • Motor: ZODA
  • Style: Screw air compressor .

Packaging & Delivery

Packaging Details: Standard wooden case packing for Permanent Magnetic Variable Frequency Air compressor .
Delivery Detail: 10-25 days for Permanent Magnetic Variable Frequency Air compr

DENAIR  160KW/200HP Permanent Magnetic Variable Frequency Oil Injected Air compressor





Meanings of Permanent Magnetic Variable Frequency



1. The Actual Factor of Permanent Magnetic Variable Frequency:Control the Rotation of Motor's Space Magnetic Field.
2. Basic Composition of Permanent Magnet Synchronous Motor:Stator Winding,Rotor,Unit.
3. Rotational Magnetic Field is generated by Stator Winding through the Three Phase Electric,which synchronize with the main
frequency.
4. Rotor is a kind of permanent magnet which is made up of permanent magnet materials.It will rotate under the function of  rotational magnetic field which is generated by stator winding.


Product Description



 DENAIR Permanent Magnetic Variable Frequency Air Compressor Core Components



1. Efficient permanent magnet motors



Appearance Design
1. Obtain Appearance Design Patent:Certificate No.Zl 201330085626.3
2. Permanent Magnetic Motor Cooling Structure Patent
Design,Application no:ZL 201320216379.0 Class F Insulation,Grade B
Temperature rising.
3. Permanent Magnetic Motor Cooling Structure Patent
Design,invention patent no.:ZL 201320216379.0 Class F
Insulation,Grade B Temperature rising.
4. No bearing design——100% transmission efficiency.
5. Torque Perfect Linear Output.
6. Endurance Experiment up to five years,40000 hours endurance running without troubles.







2. Efficient Permanent Magnet Air End(Compression Unit)



1. Adopted Rotor is made by Germany Processing Equipment,which can ensure the dimensional
precision of parts
2. Adopting World Famous Brand SKF Bearing,extending the service life
3. Design for High Over-loading Working Condition,highest working pressure can reach 1.6Mpa
4. High Volumetric Efficiency
5. Low Noise
6. Stable Operation,Strong and Durable





Greatly reduce the quantity of bears of motor,small parts make easier repair and maintenance,efficiently shorten the time for daily maintenance,bring down the maintenance cost regularly. No need to consider of the abrasion,repair and replacement's problem for the belt,gear and coupling.







DENAIR Permanent Magnetic Variable Frequency Oil Injected Air Compressor  Features







1. Intelligent Touch-Screen Design



Real-time observation of the compressor operation status: Host, fans, exhaust gas temperature, exhaust pressure, power output, total electricity consumption, fault messages, 24-hour customer service line.



Multifunction Design: Data curve, parameter settings, device information, data query.



2. Unique Permanent Magnet Driver



High efficiency, detachable faceplate, switch use, with memory function.

Perfect protection:out of phase protection,inter phase short circuit protection,short circuit to earth protection,overcurrent protection,overvoltage protection,undervoltage protection,overload protection,overheat protection and motor heat protection.
Circuit boards enhancing coating, dust corrosionIndependent Cooling Air Dut Design,hanging installation,Dust protection,corrosion protection,system with small heat.
Powerful overload capacity and unique technology for limiting current.
Proprietary efficient control programWide frequency design, control range wider.



3. Oil Gas Separator



Adopt imported brand,ensure the oil content that will be less than 3ppm.

Overlong service life:6000Hr~8000Hr



4. Oil Filter

Imported brand,filter the dirts in the lubricated oil reliably,oil particles can be controlled at 0.1 micron,ensure the smooth and well-lubricating oil system.



5. Air Filter

Imported brand, filter the dirts in the air reliably,dust particles can be controlled below 0.3 micron,filtering accuracy up to 99.99%.



6. Stainless Steel Piping Design

Stainless steel tubing designed to effectively prevent rust inside the pipe and so on.Calandria simple, beautiful appearanceAvoid piping due to leakage, and produce other security incidents.



Technical Parameters



ModelDAV-45ADAV-55ADAV-75ADAV-90ADAV-110ADAV-132ADAV-160A
CompressorAir
Delivery(m3/min)
7kgf/m22.3~7.83.2~10.54.1~13.55.0~16.57.0~21.07.2~24.18.7~29.0
8kgf/ m22.2~7.33.0~10.03.9~13.14.7~16.06.0~20.07.0~23.28.5~28.2

10kgf/m2

1.9~6.62.6~8.83.5~11.84.2~13.95.1~17.06.1~20.57.9~26.5
13kgf/m21.7~5.72.4~8.03.0~10.03.7~12.34.4~14.85.3~17.86.8~22.5
Outlet Tempreture ℃Ambient Temperature +15℃
Outlet Pipe Diameter(inch)1 1/2''2''2-1/2''2-1/2''3''3''3''
Transmission MethodDirect Driven
Lubricated Oil Volumen (L)22.5556070100100120
Air delivery control method0~100% Automatically Control
Max working Ambient Temperature ℃45℃
MotorReted outlet power(KW)45557590110132160
ConnectorTop
Voltage (V) / Frequency (HZ)380V / 50HZ / 60HZ
TypeIP23 / Semi-closed IP23
Start MethodVariable Frecuency Starting
CoolerCooling MethodAir Cooling
Fan Power (KW)1.51.51.50.75*20.75*21.5*23.0*2
Exhaust Air Volume (m3/min )185194194320470500650
Safety indicationg deviceSafety Valve, Exhaus High Tempreture Protection, Exhaust High Pressuere Prossure Protection, Over Current Protection ,Less Phase Protection, Reversed Phase Protection
Maintenance indcating deviceAir Filter, Oil Filter, Oil -gas Separator, Lubricated Oil
Microcomputer ControllerDigital Temperature, Pressure Display Controller, Fully Automatic Operation, Stop Controller Muti-machine Interconnection Controller (Optional), Central Monitoring Extension Function (Optional)
Net Weight (KG)750150018002000250030003500
Overall DimensionL(mm)1300140021002100250025002700
W(mm)1200140014501450165016501700
H(mm)1600185016501650185018502000









Packaging & Shipping









Our Services

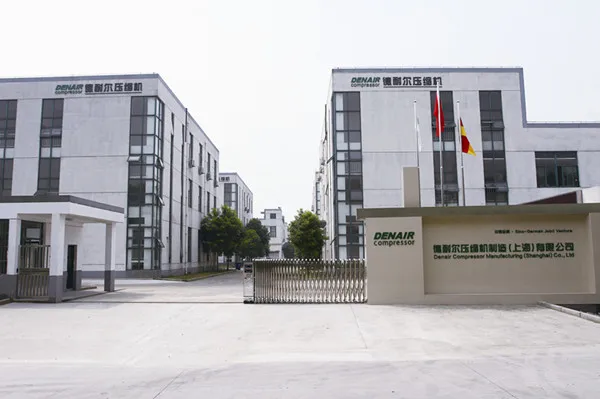

Company Information



China-Germany joint venture DENAIR air compressor

Concentrating on silent and energy-saving research and development

Committing to be a good example of manufacturing high quality compressors





FAQ



Q&A:



Q1: You're the factory or trading company?
A1: We are factory.

Q2: What is the exact address of your factory?
A2: Our company is located in 4 F, Building 5, Baosheng Fortune International Center, No.18, Baosheng Road, Songjiang District, Shanghai, China
And our factory is located in No.58, Hulu Highway, Xinbang city, Industrial Zone, Songjiang District, Shanghai, China

Q3: Warranty period?
A3: One year warranty on the machine and technical support according to your needs.

Q4: Will provide some parts of the machines?
A4: Yes, of course.

Q5: What types of packaging for products?
A5: We pack our products strictly the case seaworthy standard.

Q6: What is the voltage of the equipment?
A6: Yes, of course. Voltage can be customized according to your requirements. As 220V / 400V / 440/460 / 415V / 6kV / 10KV are available.

Q7: What payment method can accept?
A7: T / T and L / C

Q8: How long will it take to organize production?
A8: 380V 50Hz can delivery the goods within 10 days. Other electricity and other color delivery within 22 days

Q9: Can accept OEM orders?
A9: Yes, with professional design team, OEM orders we can accept.

Q10: What are the clauses foreign trades are acceptable?
A10: Clauses foreign trades available: FOB, CIF, CFR, EXW, CPT, etc ...

Q11: Does your company have an office abroad?
A11: Yes, we have an office in Surabaya Indonesia today.
